PREPATCH SEMTEX XL

SOURCE ------------------------- DESTINATION

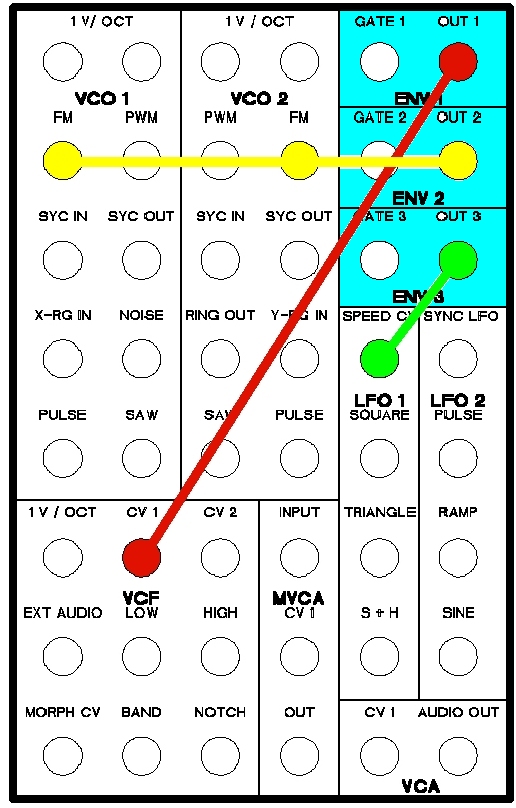

ENV 1 OUTPUT -------------- CUTOFF AMOUNT 1

ENV 2 OUTPUT -------------- FM 1+2 IN VCO«s, MVCA CV 1

ENV 3 OUTPUT -------------- LFO 1 SPEED CV 1

in gross

in gross

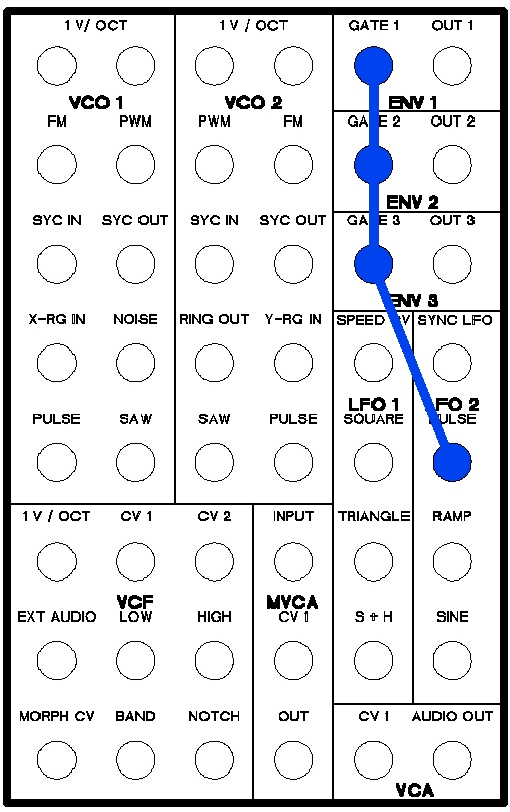

ALL GATES ARE TRIGGERED AT GATE 1 INPUT !

FOR INDEPENDENT GATES: PLUG THE DESIRED INPUTS.

USE THE LFO 2  PW – CONTROL TO ADJUST DIFFERENT

GATE – LENGHTS.

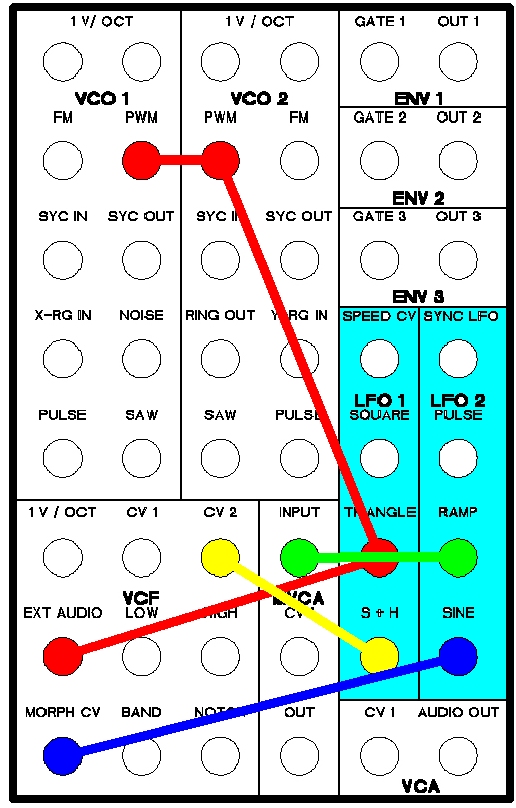

LFO 1 TRIANGLE OUT --- EXT. AUDIO INPUT VCF, PWM 1+2

LFO 1 S+H OUT ------------- CUTOFF AMOUNT 2


LFO 2 PULSE OUT -------- TRIGGER ENV 1+2+3

LFO 2 RAMP OUT ---------- MVCA INPUT,

LFO 2 SINE OUT ------------ MORPH CV VCF

in gross
in gross

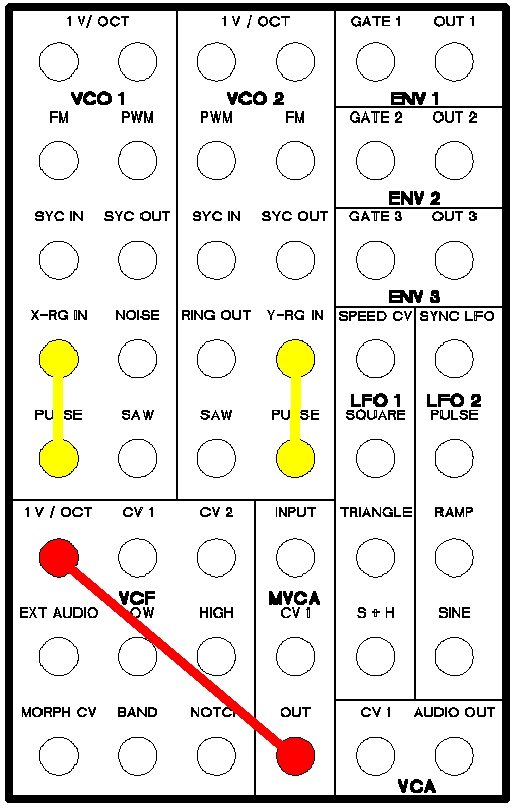

MVCA OUT -------------------- 1V / OCT. VCF INPUT

INTERN 5 VOLT ------------- VCA CV 1

TURN VCA CV 1 FULLY CLOCKWISE FOR FULL SIGNAL!

PULSE 1 OUT ----------------- X – RING INPUT

PULSE 2 OUT ----------------- Y – RING INPUT


(C) anyware / sequencer.de / moogulator
